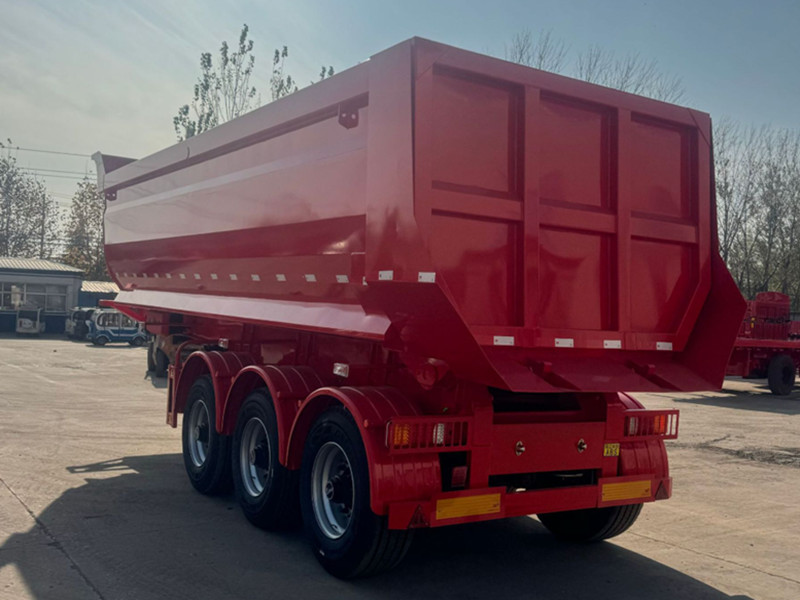

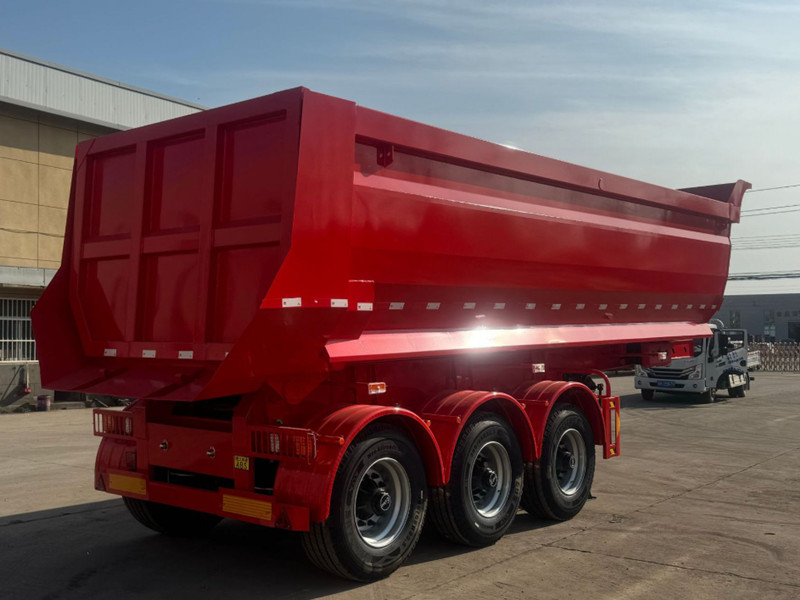

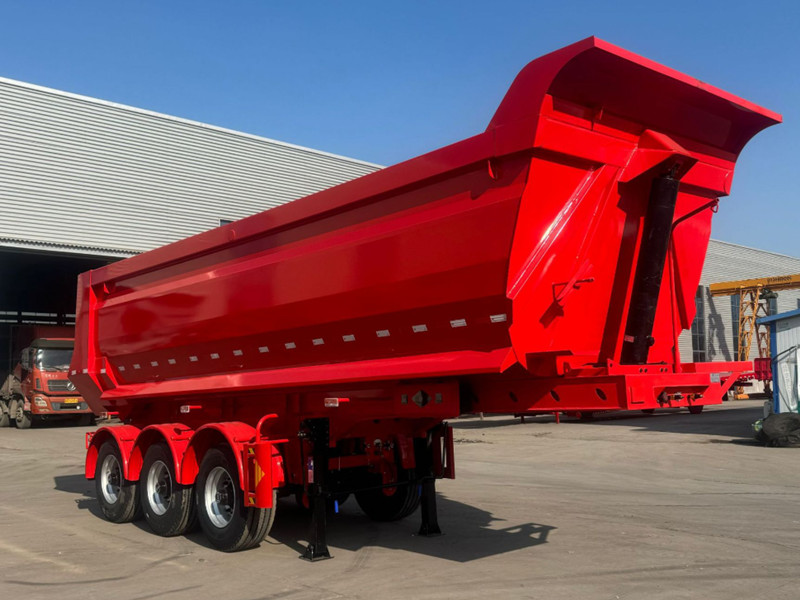

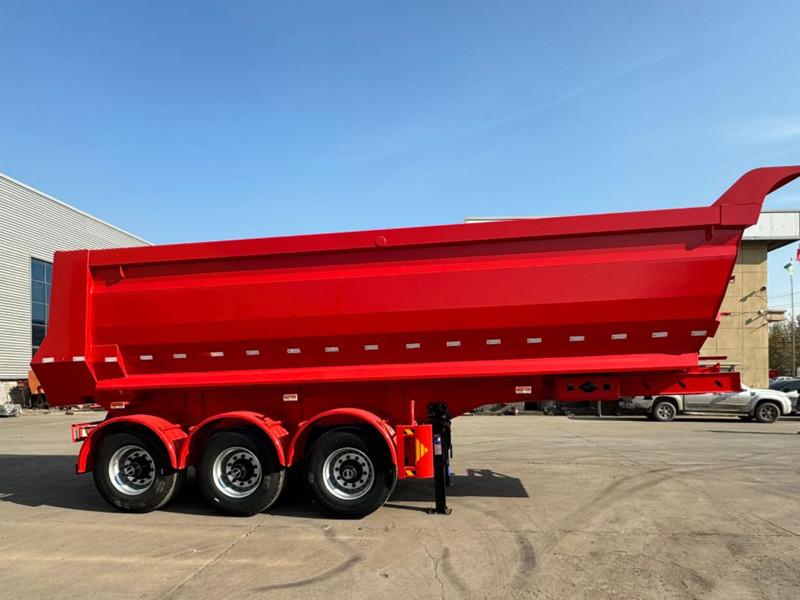

Single tire dump trailer with 3 axle 50 ton load
Edible oil tanker semi trailer features
1. High strength steel material frame ensure long service life
2. Famous brand essential parts like HYVA lifting system
3. High standard welding and assembling with one year warranty
3 axle single tire dump trailer specification,
Application | Coal/Mine/Stand/Stone Loading |
Dump Style | Rear Dump |
Loading Capacity | 30T-100T |
Axle | 2/3/4*13/16T |
Length | 11000mm |
Width | 2500mm |
Height | 2800mm |
Cylinder | HYVA (model is according to the length of cargo box) |
Floor Plate Thickness | 5mm |
Cargo Thickness | 4mm |
Cargo Style | Rectanglular/Round |
Front Axle Lifting | Available |
Main Beam | Material Q345/T700 |
Height: 500mm | |
Upper Plate: 14mm | |
Middle Plate: 8mm | |
Lower Plate: 16mm | |
Tire | 11.00R20/12R222.5*8/12/16 pieces Linglong/Triangle/Double-Coin/Bridgestone |
Rim | 8.0/9.0*8/12/16 pieces, steel/aluminum |
Suspension | Mechanical/Airbag |
Leaf Spring | 90mm*13/16mm*10 pieces |
Landing Gear | 28T two-speed, JOST |
King Pin | #50(2″)/#90(3.5″), JOST/Other Brand |
Tool Box | Steel/aluminum |
