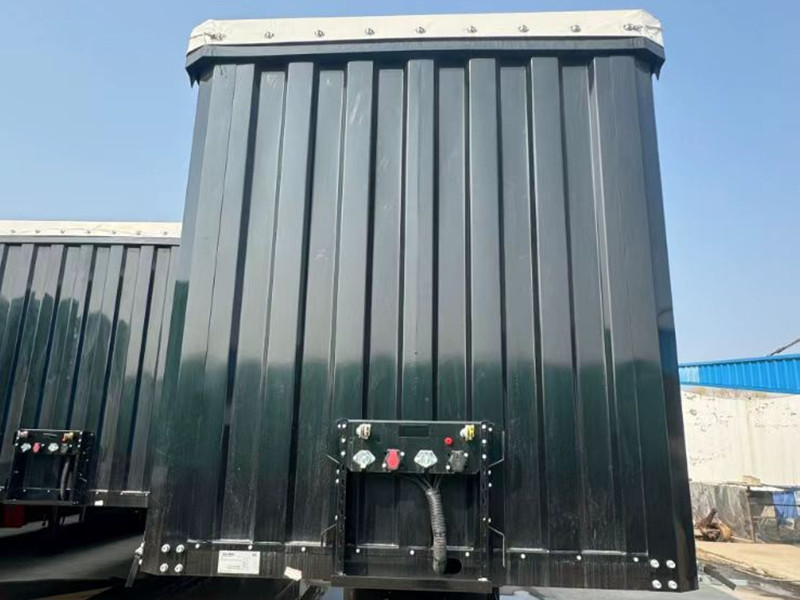

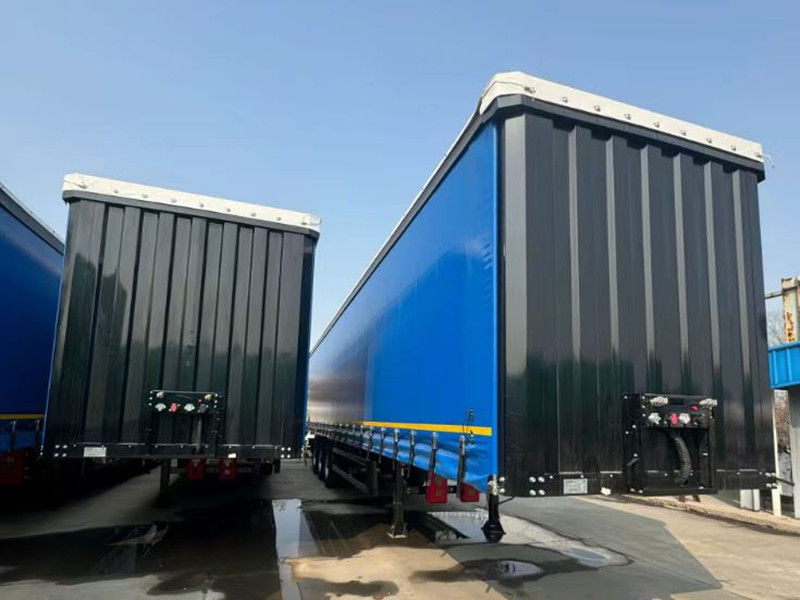

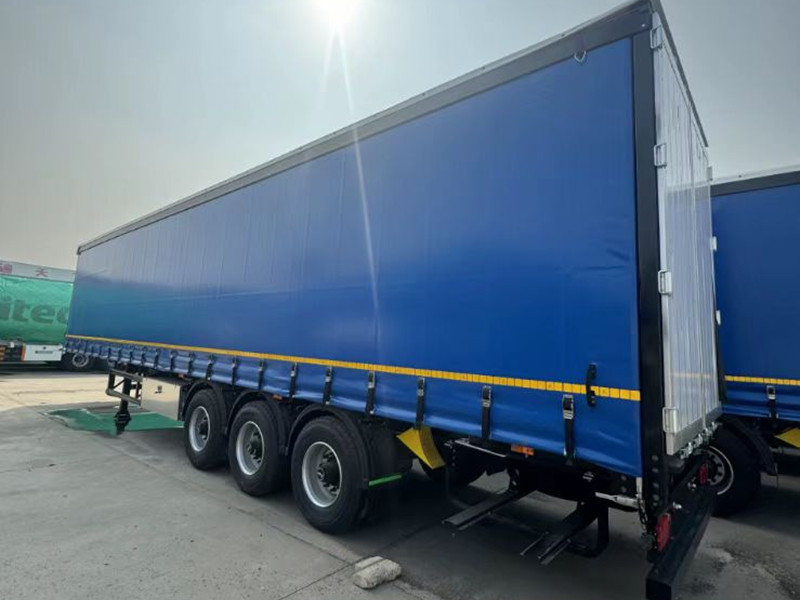

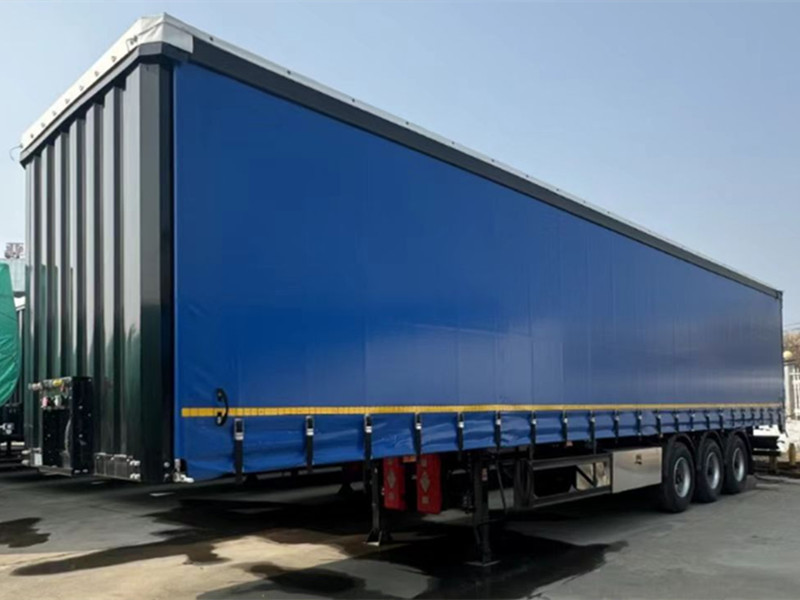

Side curtain trailer with air suspension single tires
Features of ELITE side curtain trailer,

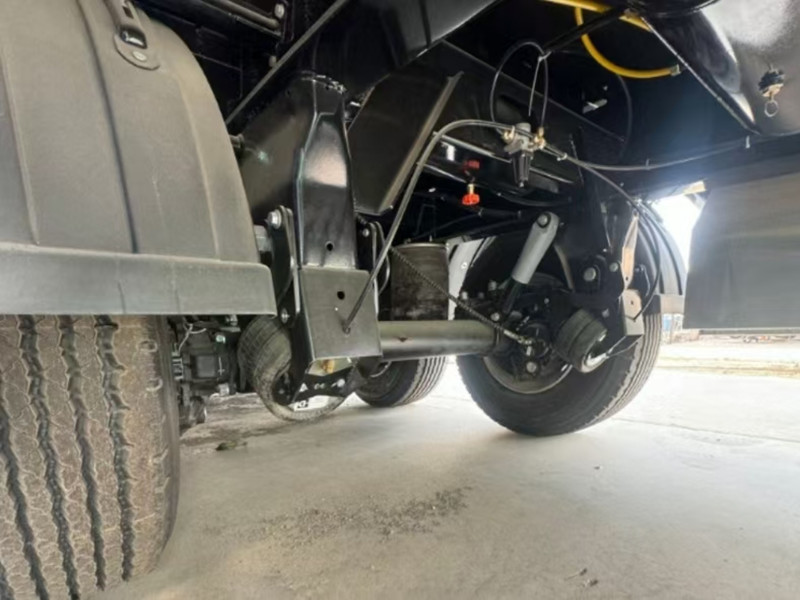

1. Air suspension and singe tires 365/80R222.5
2. High strength steel chassis with long service life
3. Side curtain to protect the goods transportation
ELITE side curtain trailer specification,
Name | Side Curtain Semi-Trailer | ||
Outside Dimension | 15000*2550*4000mm | ||
Height of main stringer | 450mm | Thickness of upper and lower wings | 12/14mm |
Vertical plate thickness | 8mm | front place | Steel (front: electrical gantry bracket) |
ceiling | Manual translation open and close, cord fabric 650g | back door | Aluminum alloy, double door (split in the middle) |
Axles | 13T*3 disc brake, ABS on two axes. Air suspension 3-axis German suspension | bottom plate thickness | 28mmWaterproof phenolic flooring (double sided) |
Tires | 385/65R22.5*6pcs | Rim | 11.75R22.5*6pcs |
landing gear | FUWA 28T two-speed | The hook on the bottom plate | 28pcs |
King pin | JOST 50mm, bolt type | Tool box | 600mm aluminum door tool box ,1unit |
Column、 cross bar 、side board | Steel, column (3+3), 4+4 cross bars on both sides (120mm height each), mobile cross bars can be used to move down the bar plate | ABS | ABS,WABCO |
light | LED | spare wheel carrier | 2 units |
Air chamber | 6 doubles | Side curtain | Double side, cord fabric 900g |
Electric System | 24V，7-hole socket | Color | silver gray |
