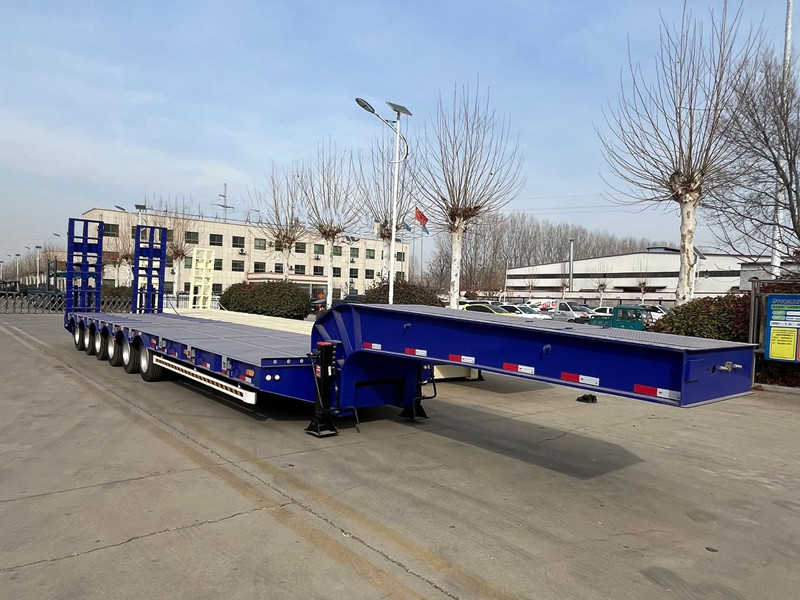

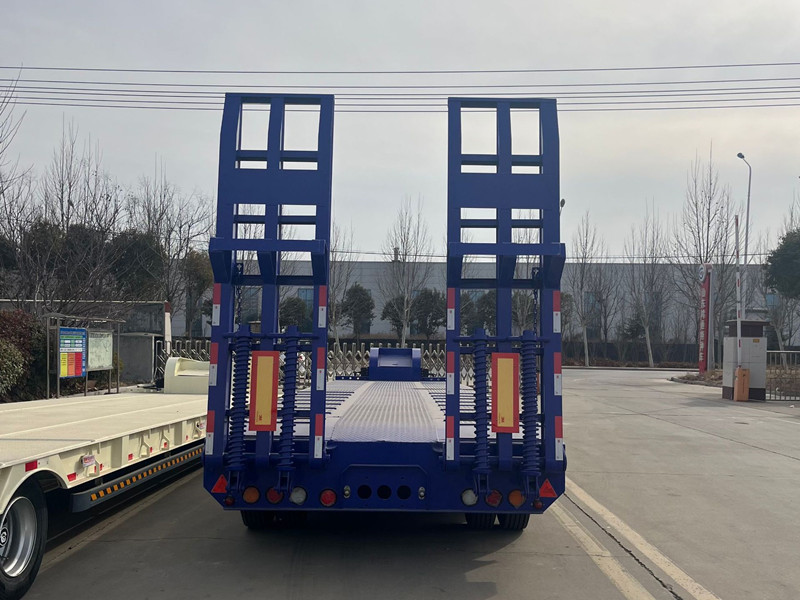

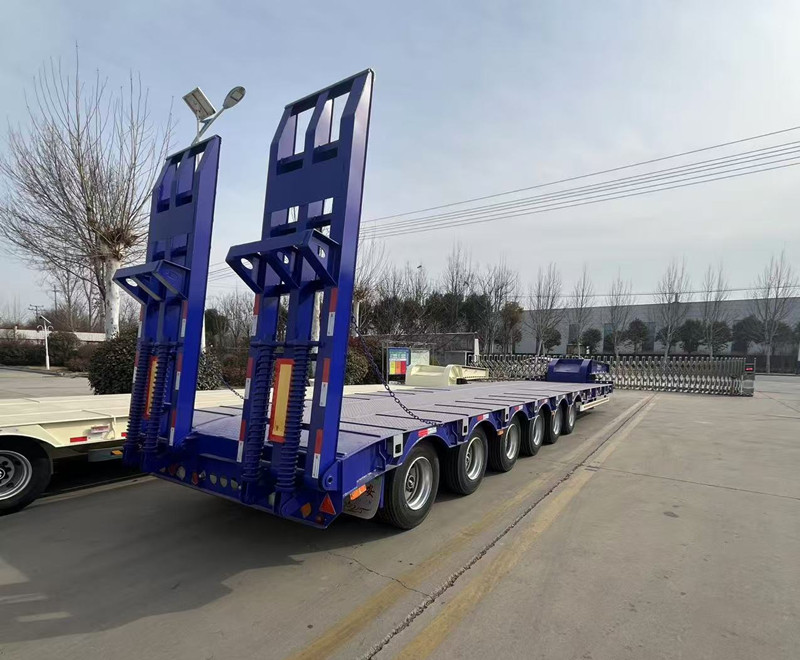

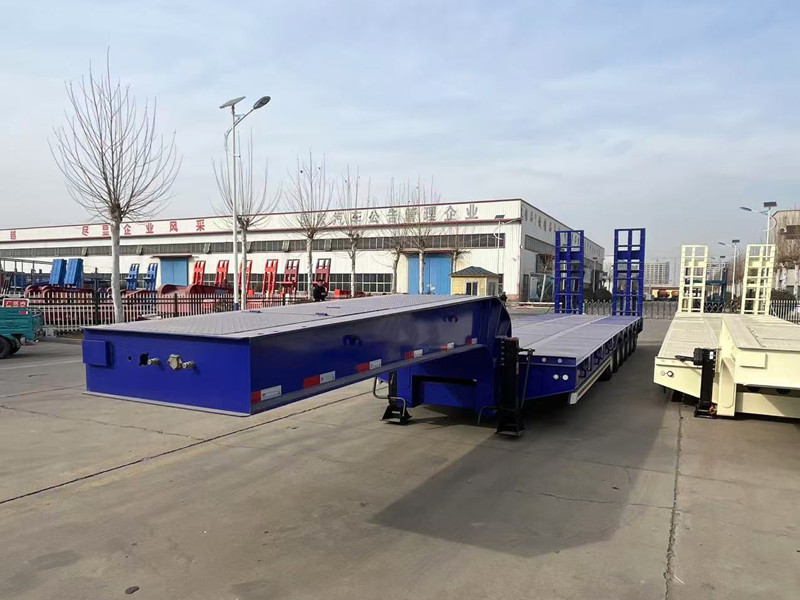

Best Low Loader Trailers: 6 Axle 120 Ton Drop Deck
Features of our 6 axle 120 ton drop deck low loader trailer,
1. Highest quality steel and welding technology to ensure maximum strength Maximum and payload capacity.
2. Low height design for abnormal height and length cargo load.
3. Ramps for vehicles and machinery to climb on.
4. Can go across rough roads easily at construction and mining sites.
120 ton drop deck low loader specification,
Product Name | 6 axles lowbed semi trailer |
Size（mm） | 14000*3000*1100mm |
Payload | 120,000KG |
Plate | 5mm checked plate |
Axles | 6 x 13ton capacity |
Ramps | Mechanical spring ramps |
Main beam | Height: 500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm; Material is Q345B Steel. |
Side beam | 250mm I beam; 20mm channel steel (Material is Q235steel ). |
Bottom Platform | 4mm thickness diamond steel plate |
Suspension | Mechanical suspension (Air suspension optional) |
Leaf spring | 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 |
Tire | 12R22.5 / 11.00R20 8pcs (Other size optional) |
Rim | 9.00-22.5 / 11.00R20 8pcs (Other size optional) |
Kin pin | 2’’/3.5’’ bolt type |
Landing gear | 28 Ton two speed |
Braking system | Double air chamber, brake valve,45L air tanks; ABS optional |
Electrical | LED light, 7 ways, 24V |
