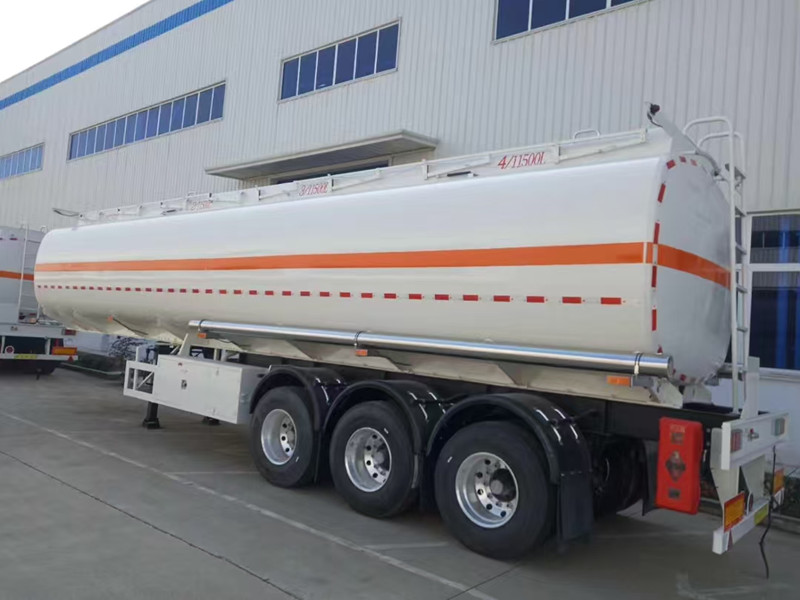

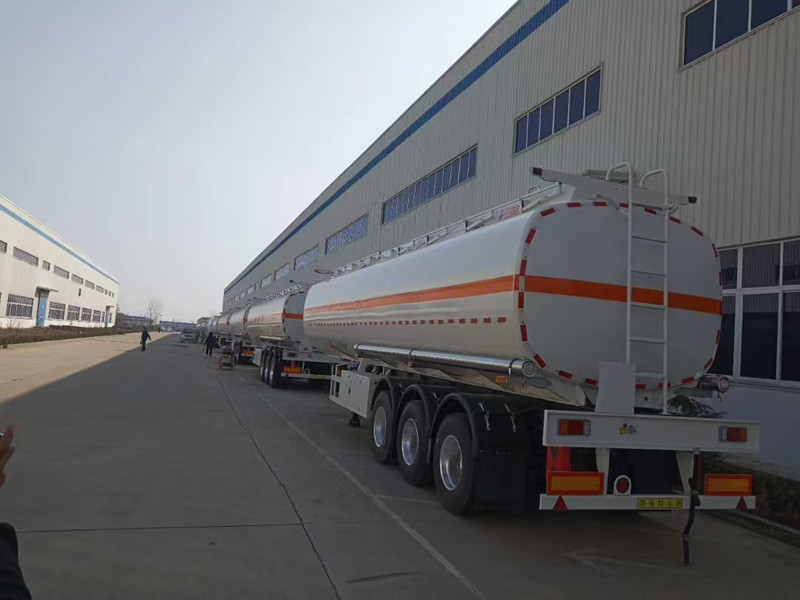

46000 liters 4 compartments aluminum fuel tanker factory
ELITE 46,000 liters aluminum fuel tanker trailer factory features,
1. World famous brand main parts and strong chassis and thick body.
2. WABCO brake system.
3. Safety marks and fire extinguishers.
4. Aluminum tank and rim with light weight high efficiency.
ELITE aluminum fuel tanker factory specification,
1. General Info: | |
Capacity: | 46,000 liters |
Compartment | 4 compartments |
Transport product: | Automotive fuel |
Overall dimension: | 12800*2500*3800 mm (Final dimension depends on the final design drawing) |
2. Tank shell | |
Material | Aluminum alloy |
End plate | 7 mm |
Tank shell & compartment divide | 6 mm |
Anti-wave Baffle | 5 mm |
Main beam | Standard features heavy duty frame welded to tank bottom |
Roll-over coaming | Full length roll-over coaming for anti-fall protection on both side of tank top |
Thermal insulation and heating system | With thermal insulation, steam coil system |
Hydrostatic test | Pressure Testing – hydrostatic @ 35kpa (5 psi) each compartment |
Painting | Aluminum alloy color |
3. Components | |
Manhole cover | Aluminum alloy quick opening manhole cover, 4 pcs |

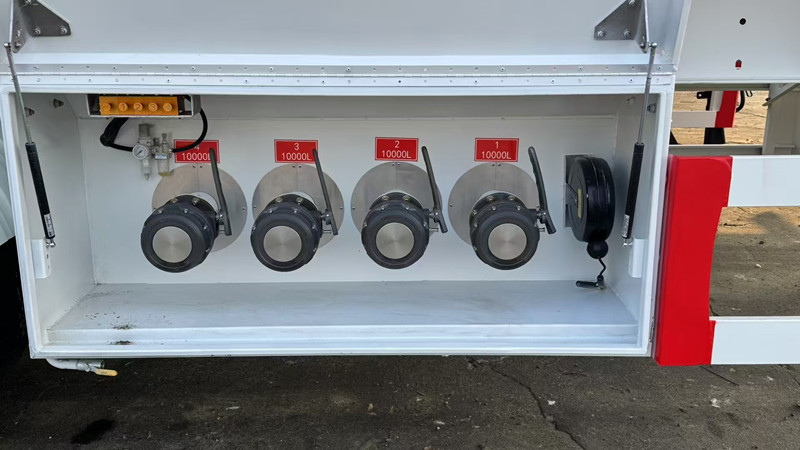

Discharge valve | 4-inch aluminum valves, lockable discharge valve box. |
Hose and hose carrier box | 1 nos (LHS) and 1 nos (RHS) hose carrier to fit 3” x 6 meter hose. |
4. Running gear | |
Kingpin / plate | 3.5” or 2” king pin |
Landing gear | 1 set 28 tons landing gear with two speed manual operation type |

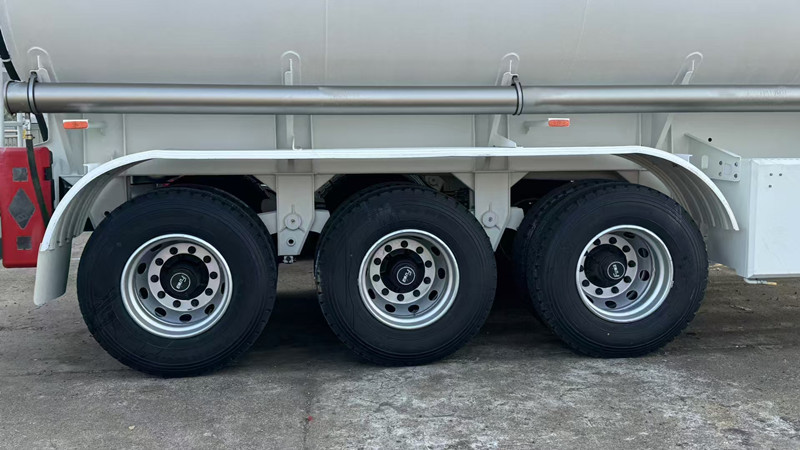

Axle | Fuwa brand 3 axles * 13 tons capacity |
Suspension | Mechanical Reinforced Multi Leaf Spring. Suspension frame Mild steel fabricated for heavy duty usage. |
Brake system | Dual line air brake system comprising of contact type coupling, brake chamber, emergency valve and air reservoir |
Tires | 12 pcs 12R22.5 tubeless tires |
Rims | 12 pcs 9.00*22.5 steel tubeless rims |
5. Accessories | |
Access Ladder | Detachable steel fabricated with steps mounted at the rear of tank. |
Walk way | Anti-skid walkway fitted with steel grating. |
Safety handrail | Manual operated collapsible handrail fixed on the top of tank |
Tool box | 1 set lockable tool box |
Side guard | Side Guard be provided made of steel material on both side of the tanker |
Mudguard | Whole piece of steel plates type c/w mud flaps |
Rear bumper | Steel bumper to accommodate light assembly and number plates to cover full width of the tank. |
Fire extinguisher holder | 2 pcs x8 kgs dry powder fire extinguisher. |
Anti-Static System | Earthing strip to be installed at the rear of tanker. 1 Nos of grounding bounding reel. |
ABS | Kormee 4S/2M |
Light & Wiring | Standard front, side and rear. 24 volt system, 7 wires ISO socket. Red/brake, white/reverse and amber/direction indicator, LED tail lamp 8pcs side marker lamp |
Reflective tapes & sticker | Standard |
Fuel tanker trailer break bulk shipping,
